Jira TraceCloud Integration Manual
Download the Jira
Integration Plug in here:
Add the plug in to your
Jira environment
Log in to your Jira
system with Administrator Credentials.
Go to ‘Manage Add Ons‘
section (Follow Administration --> Add-ons --> Manage add-ons)
Get your TraceCloud
Access URL
Once the Plug in is in
the system, click on the "Configure" button
Connect this issue to
TraceCloud
Requirements Traceability
In Jira
Download the Jira Integration Plug in here:
http://gloree-jars.s3.amazonaws.com/TCJiraIntegration/tracecloud-jira-integration-1.0-SNAPSHOT.jar
Add the plug in to your Jira environment

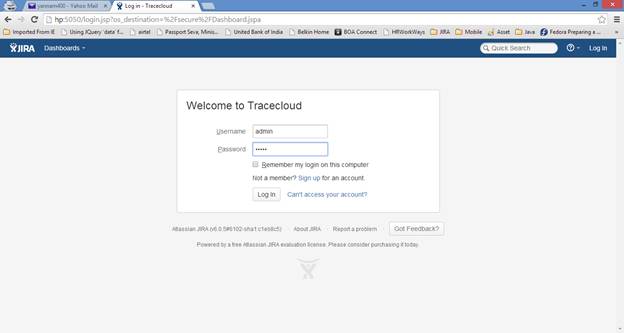

Log in to your Jira system with Administrator Credentials.

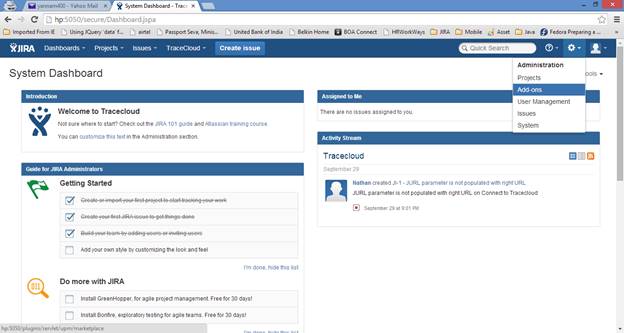

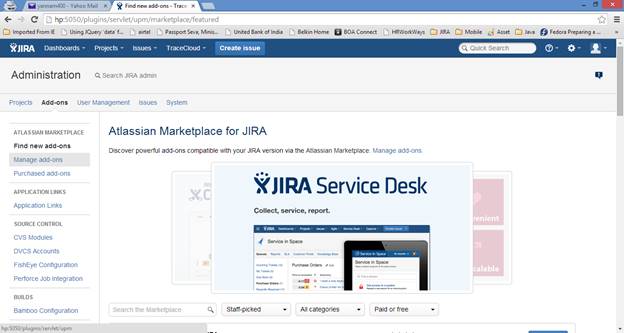

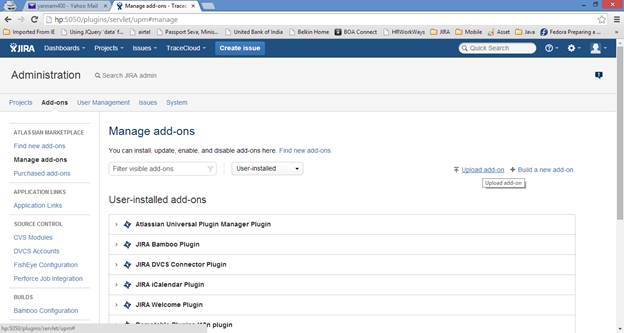

Go to ‘Manage Add Ons‘ section (Follow Administration --> Add-ons --> Manage add-ons)

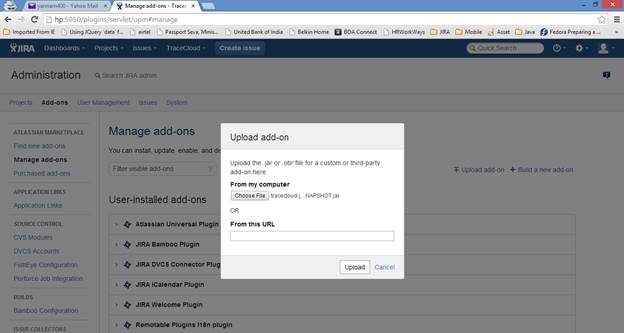

Upload Add ON to Jira
1. Select the file you downloaded by clicking on "Choose File" button.
2. Upload the file you selected above by clicking on "Upload" button.

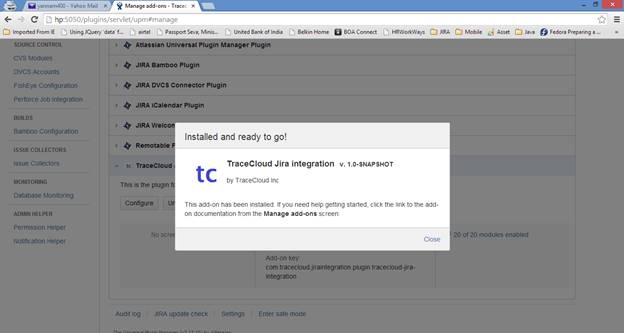

3. If Jira plug-in is successfully uploaded then you will see confirmation page as shown below.
Get the TraceCloud API Key
Work with your TraceCloud support contact (support@tracecloud.com) to get a TraceCloud API Key.
Get your TraceCloud Access URL
For TraceCloud SaaS : If you are using the SaaS TraceCloud system, enter http://www.tracecloud.com .
For TraceCloud On Premises : If you are using the OnPremises TraceCloud system, then work with your TraceCloud admin.

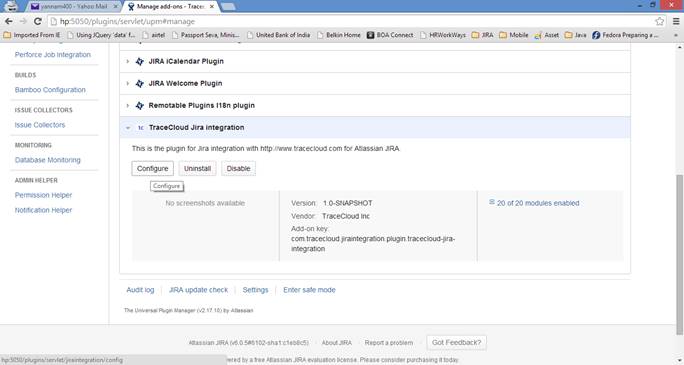

Once the Plug in is in the system, click on the "Configure" button
Note: You need to have ‘Administrator’ Privileges in Jira to add the TraceCloud Plug In.
Finish Configuration

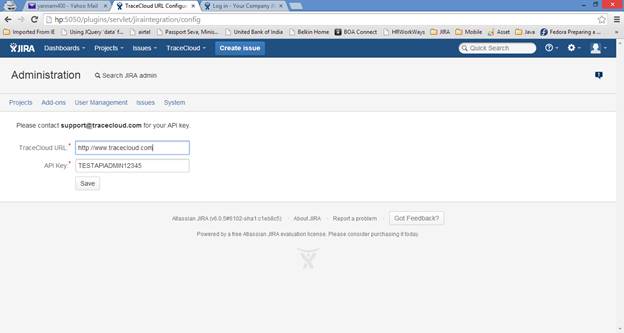

Enter the TraceCloud URL and TraceCloud API Key on Configuration page. Click on 'Save" button to save config details.
Note:
· Work with your TraceCloud support contact (support@tracecloud.com) to get a TraceCloud API Key.
· For TraceCloud URL: If you are using the SaaS TraceCloud system, enter http://www.tracecloud.com . If you are using the OnPremises TraceCloud system, then work with your TraceCloud admin to receive this.
In Jira
Create an issue in Jira

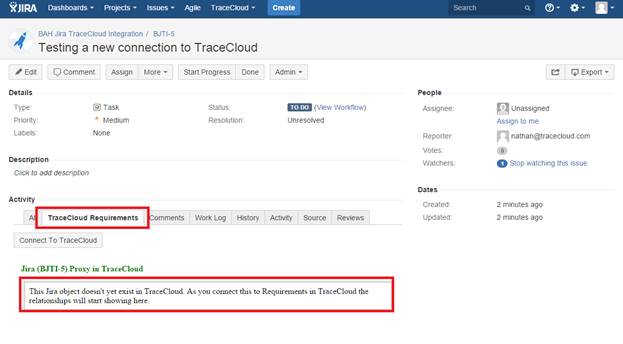

When you create an issue in Jira, you will notice a ‘TraceCloud’ tab at the bottom. It should also say, this object doesn’t yet exist in TraceCloud
Connect this issue to TraceCloud

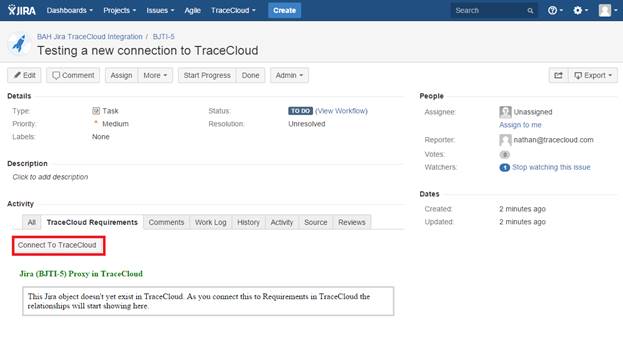

Click on the ‘Connect To TraceCloud’ button.
This will take you to the TraceCloud screen where you will be asked to log into TraceCloud (if you are already logged in, it will take you to the connection screen.

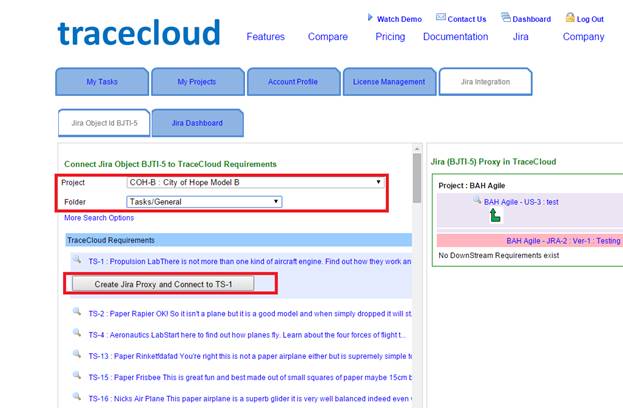

At this point, select the project, and the folder where your requirements exist and connect this Jira object to the requirement object in TraceCloud.
This will create a proxy object in TraceCloud (JRA-xx) and trace it up the requirement object you just selected.
Navigate to TraceCloud

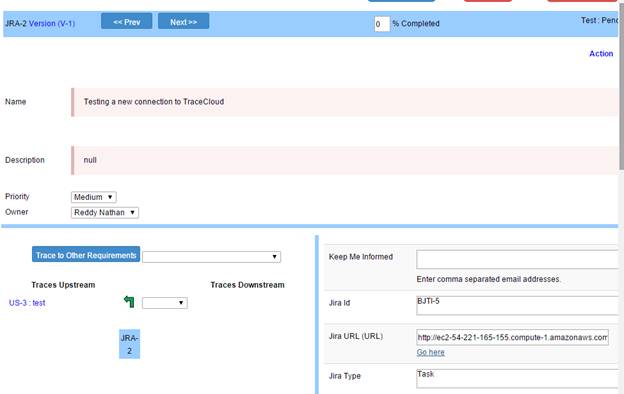

When you click on either the Requirement or the Jira proxy, it will open it up in TraceCloud.
Requirements Traceability In Jira

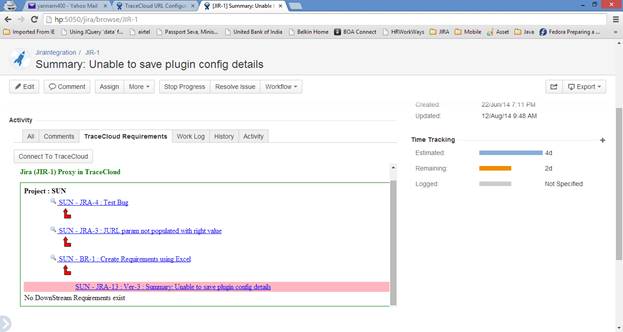

If you are looking inside the Jira system, you will see the relationship of this object to your requirements in TraceCloud.
Update to Jira
You can continue to use Jira normally. Any changes to Jira are automatically sent to TraceCloud and the trace relationship is set to suspect (red arrow), if the name / description value are changed.
Marking something completed in Jira will mark it as completed in TraceCloud too.
In TraceCloud
When you connect a jira object to TraceCloud for the first time, the system automatically creates an object type called ‘Jira’ and sets up attributes to match with Jira.

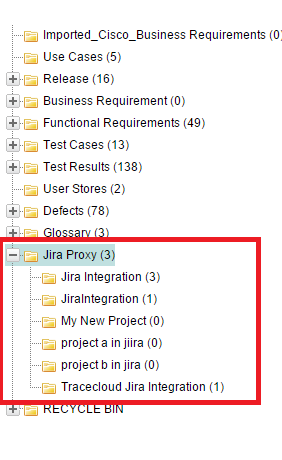

For every Jira project that sends its objects to TraceCloud, a separate folder is created to store the Jira objects. For example , if Jira Project A, Project B and Project C have objects that connect to a Business Requirement (BR-1) in a TraceCloud project, you will see the following structure :
Object Type : Jira Proxy
Folder Structure :
Jira
Project A
JRA-1
JRA-2
Project B
JRA-3
JRA-4
Project C
JRA-5
Screenshot :
